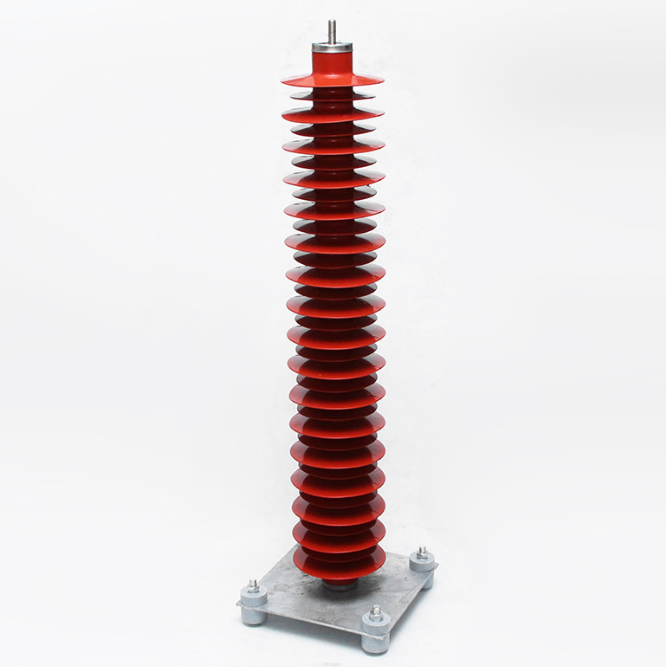

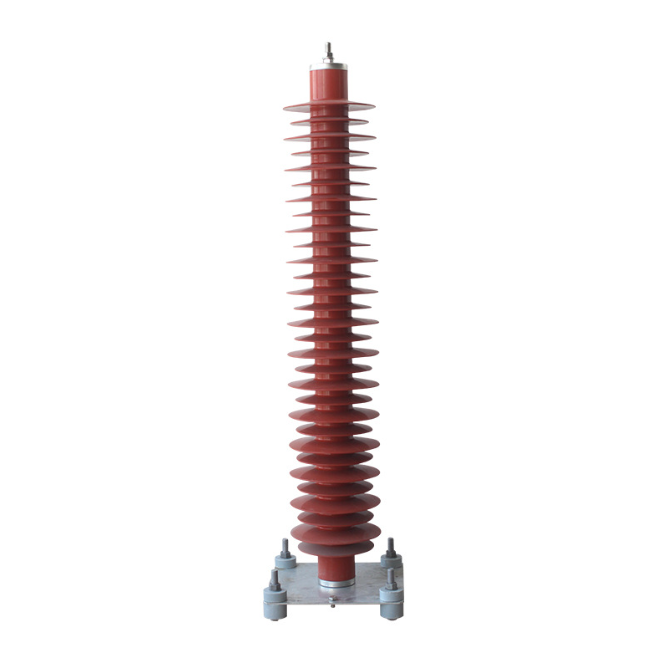

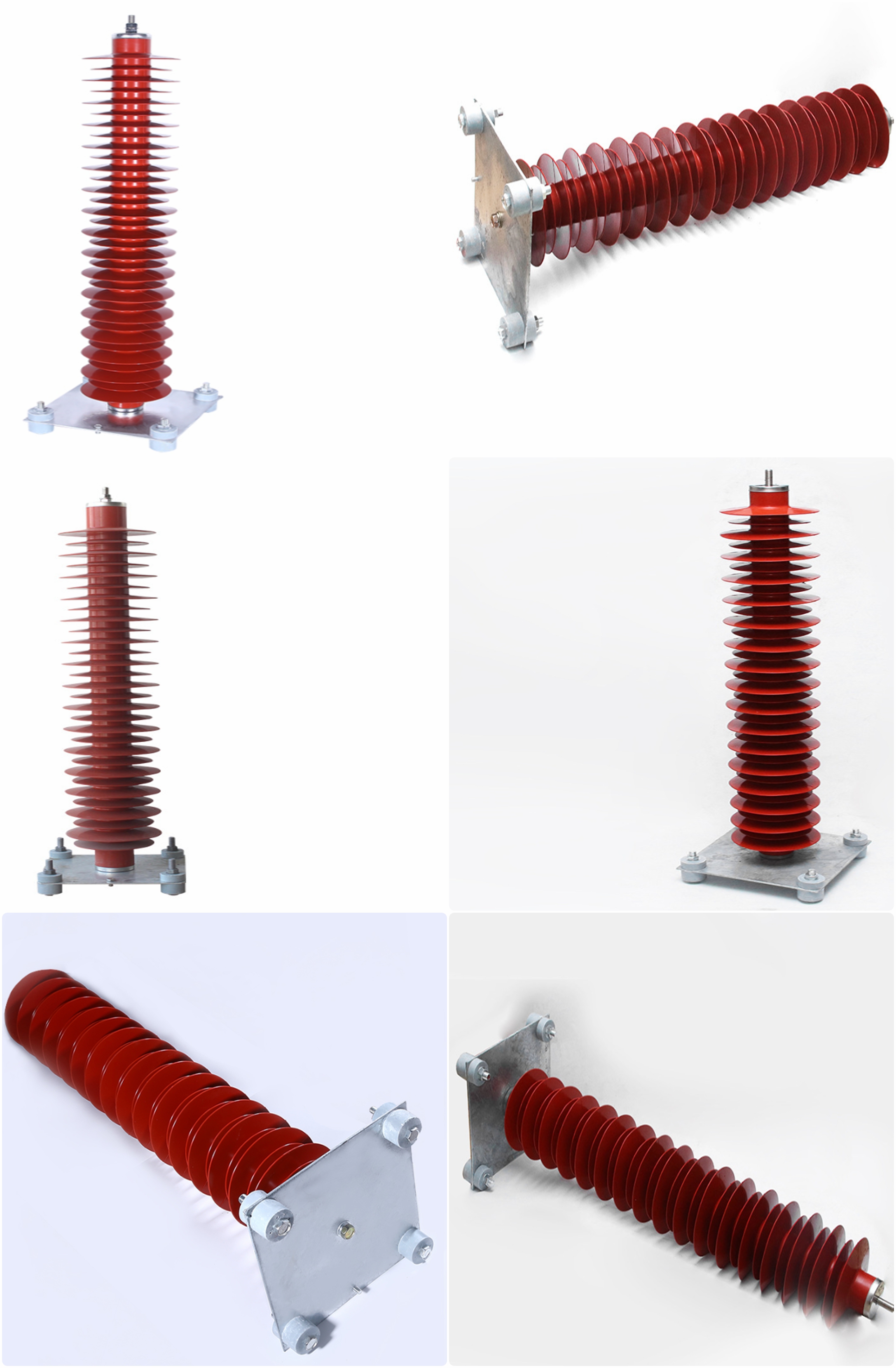

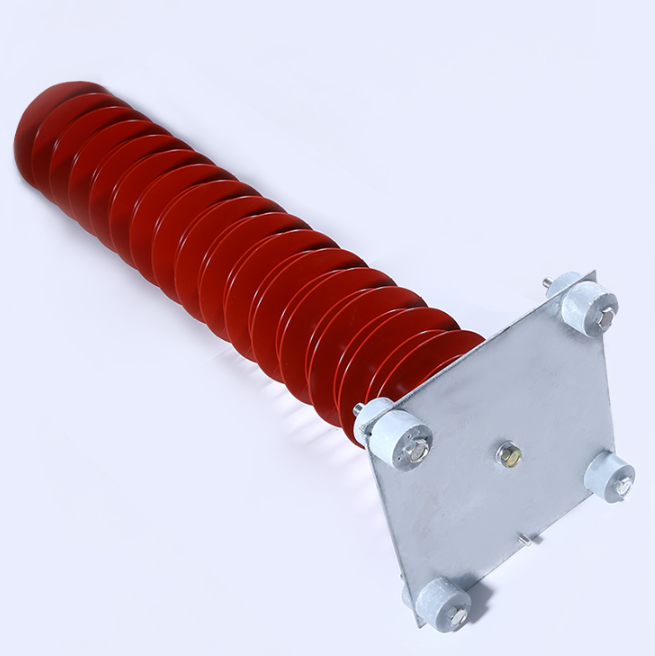

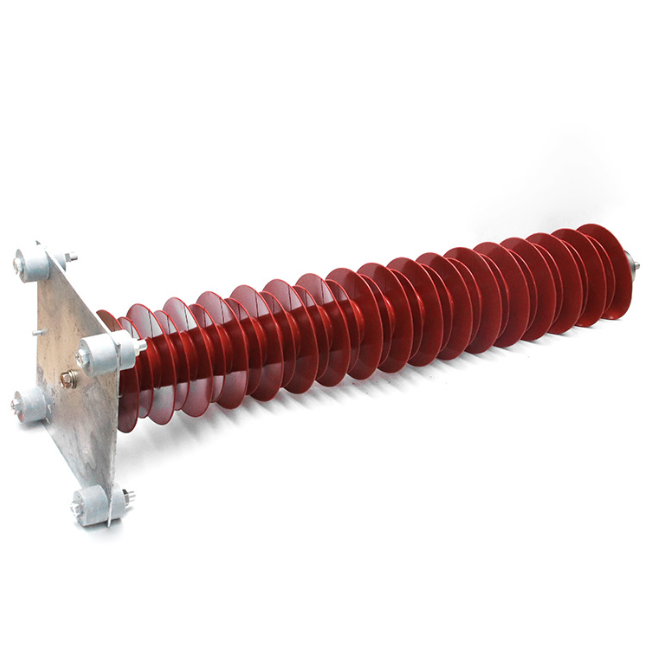

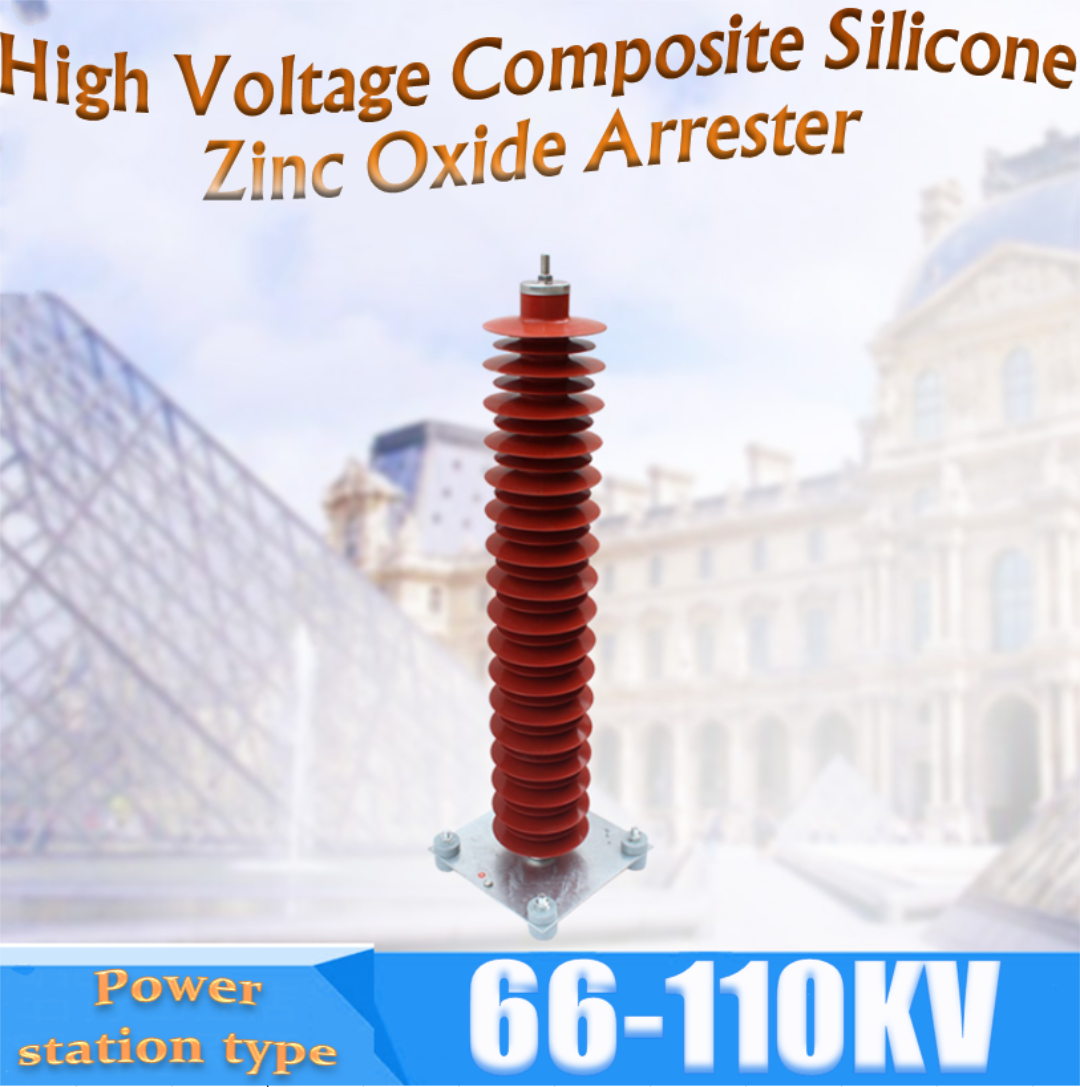

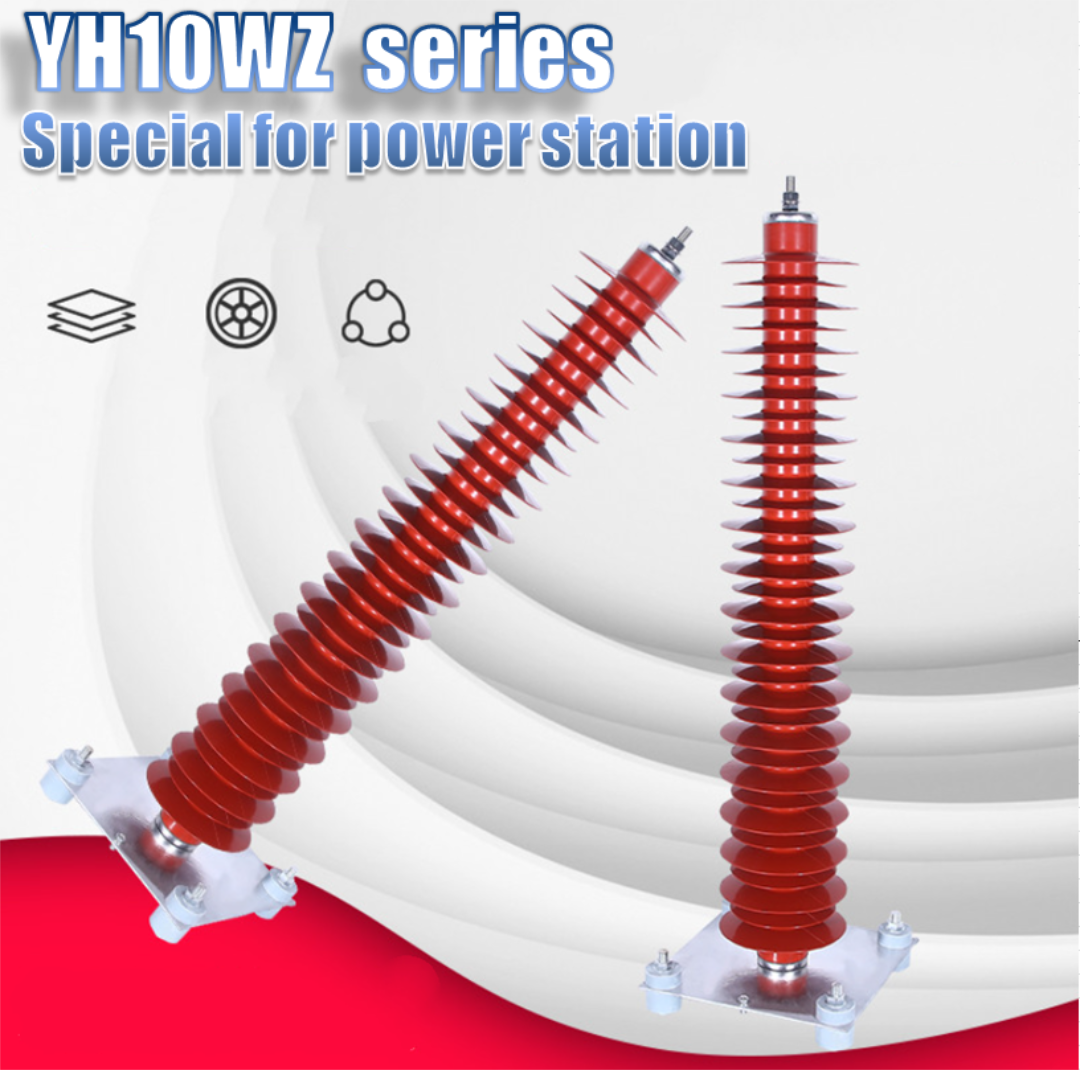

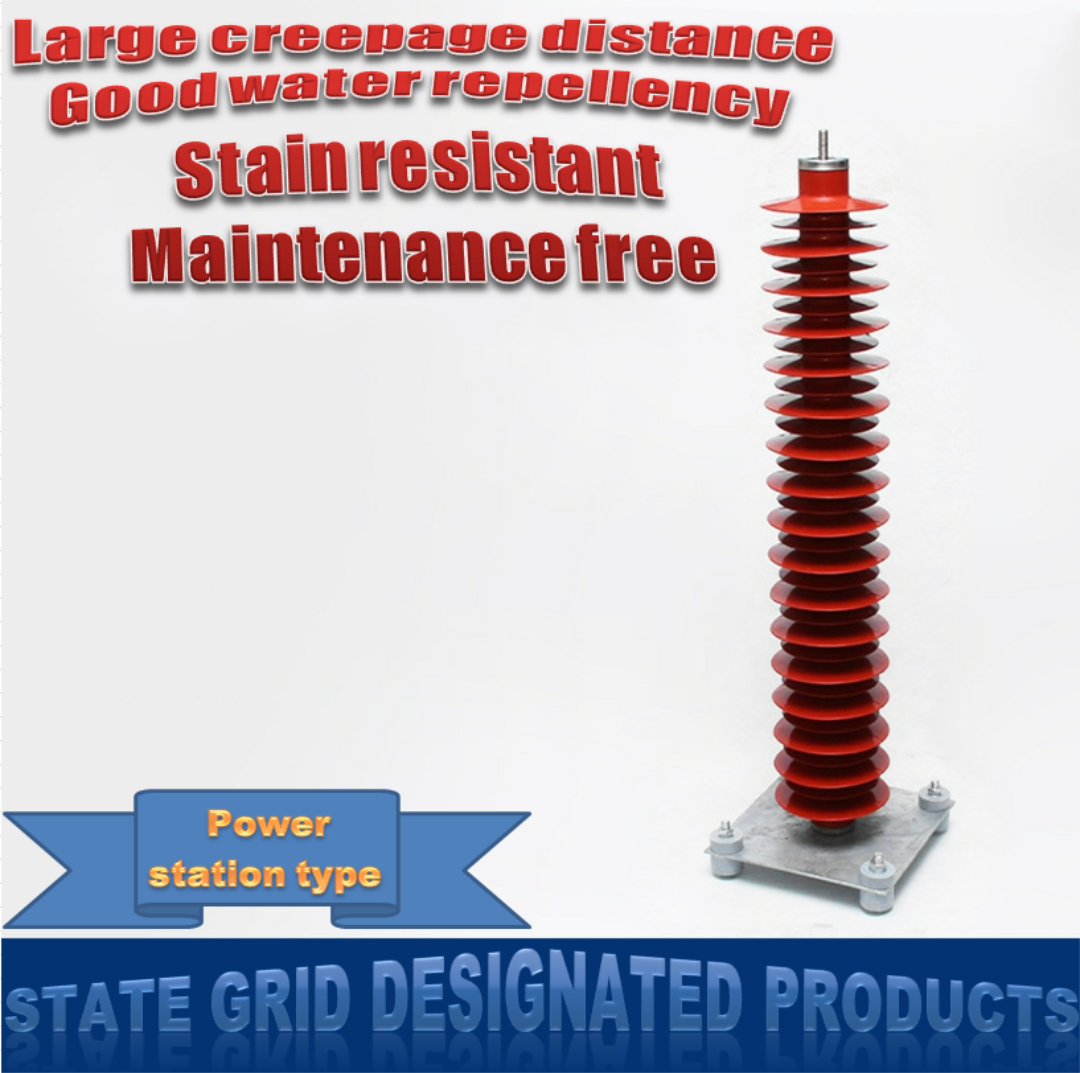

YH10WZ 66/110KV high voltage base type zinc oxide arrester power station type lightning protection

Short Description:

Product Detail

Product Description

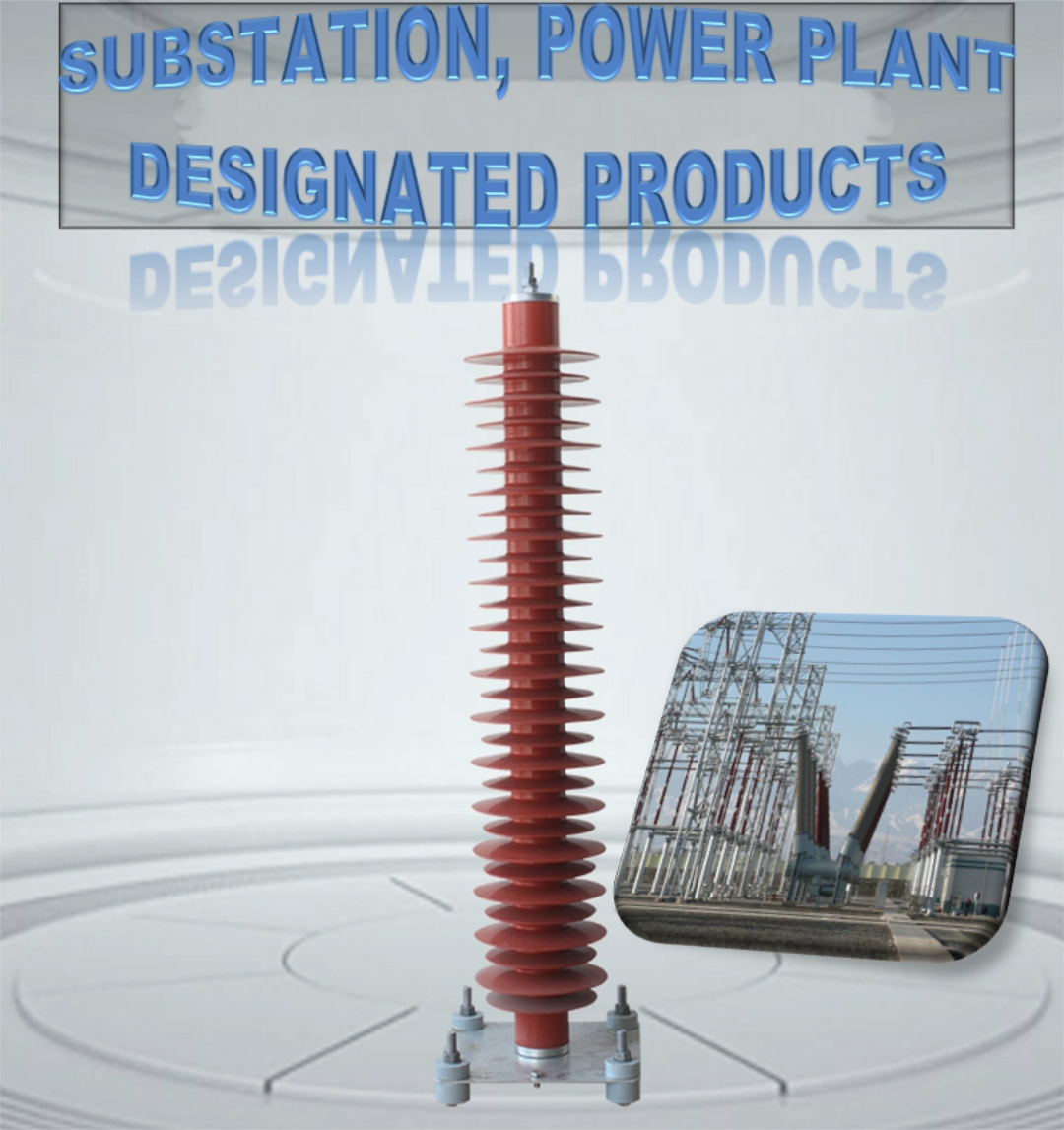

Zinc oxide arrester is suitable for AC 220kV and below power generation, transmission, substation, and distribution systems. It is used to limit the amplitude of lightning and overvoltage in the system to a specified level. It is the basic equipment for the insulation coordination of the entire system. It is the best lightning protection element in the integrated and modularized medium and high voltage power transmission and transformation equipment.
The power station type zinc oxide arrester is a lightning arrester with good protection performance. Using the good nonlinear volt-ampere characteristics of zinc oxide, the current flowing through the arrester is extremely small (microamp or milliamp level) under normal working voltage; when overvoltage acts, the resistance drops sharply, discharging the energy of the overvoltage, achieve protective effect. The difference between this arrester and the traditional arrester is that it has no discharge gap, and uses the nonlinear characteristics of zinc oxide to play the role of leakage and interruption.

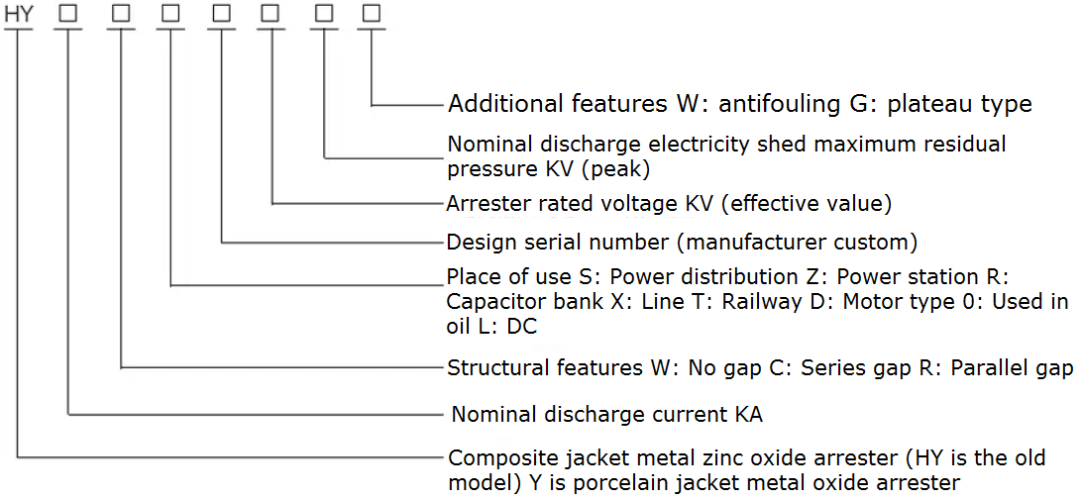

Model Description

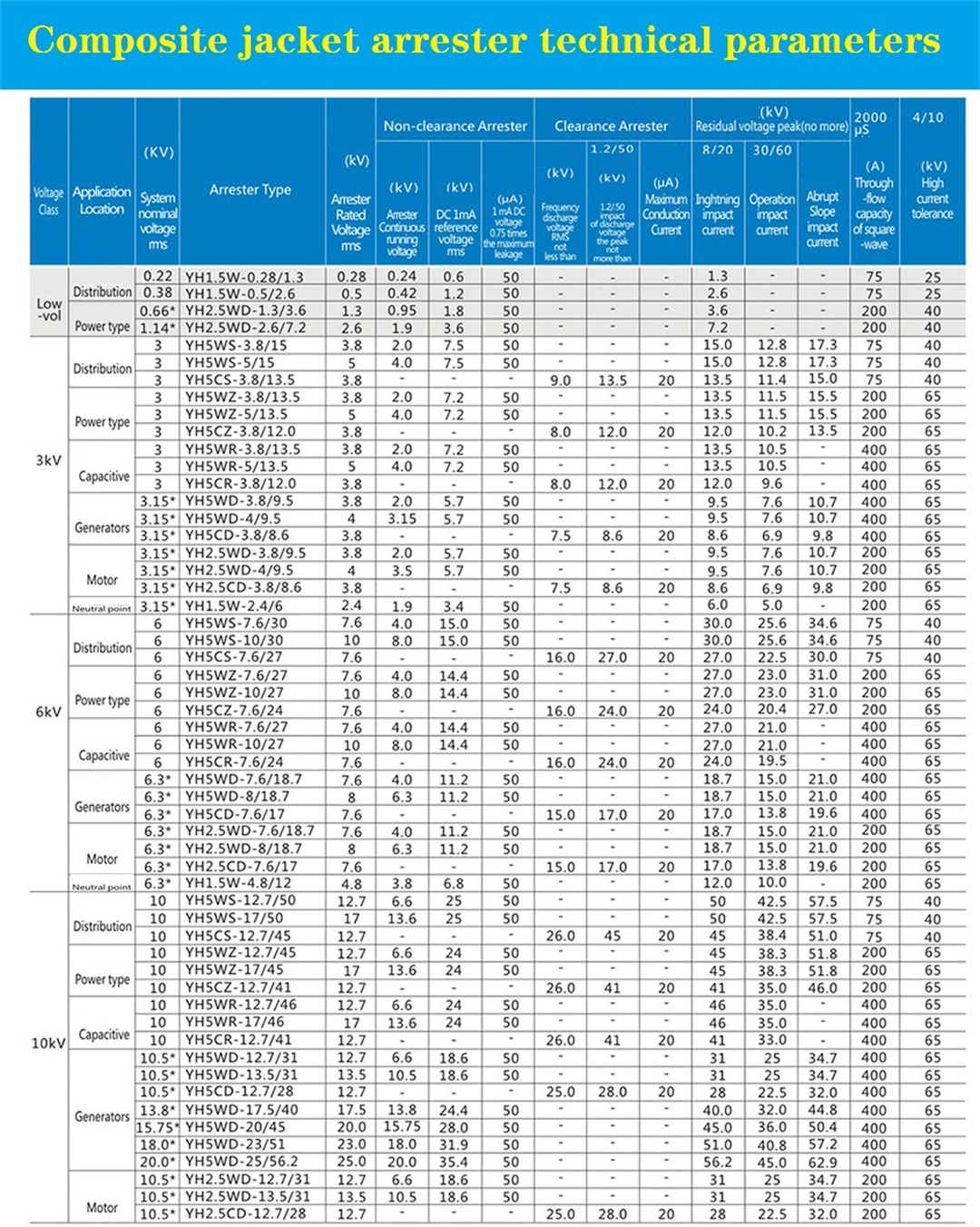

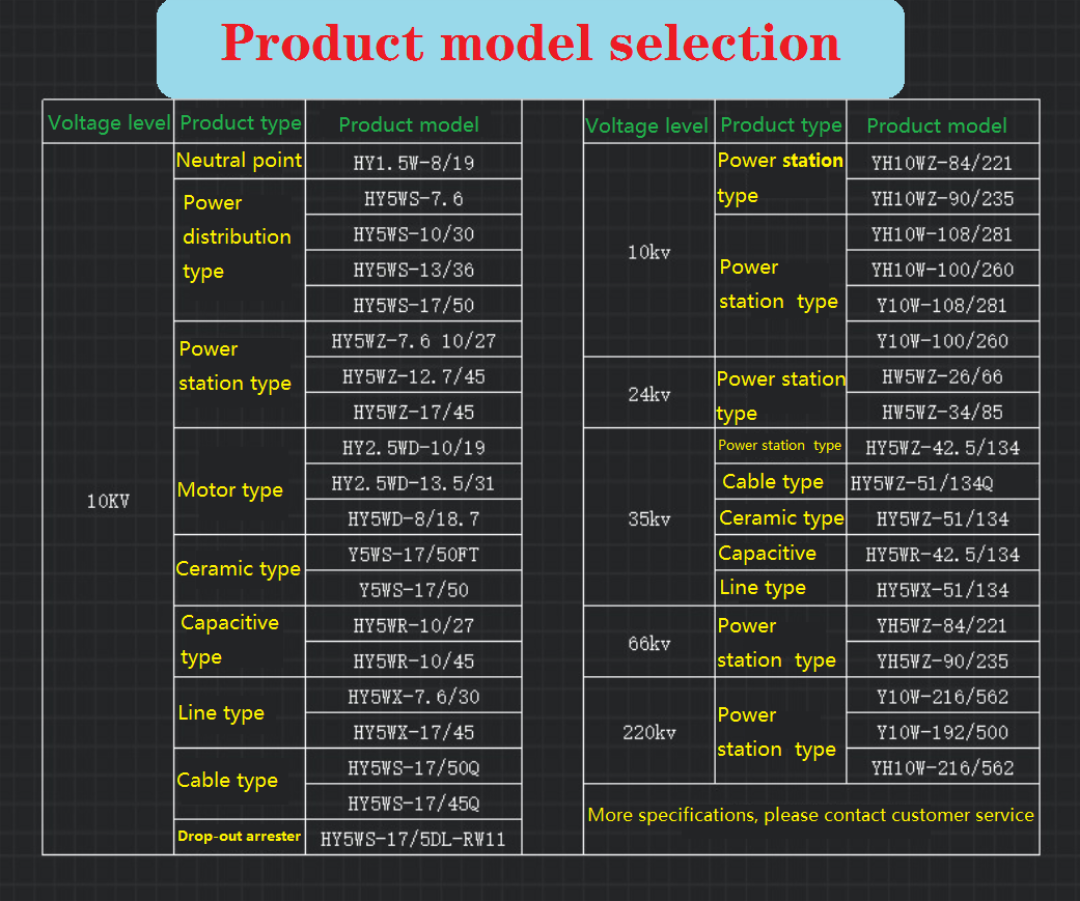

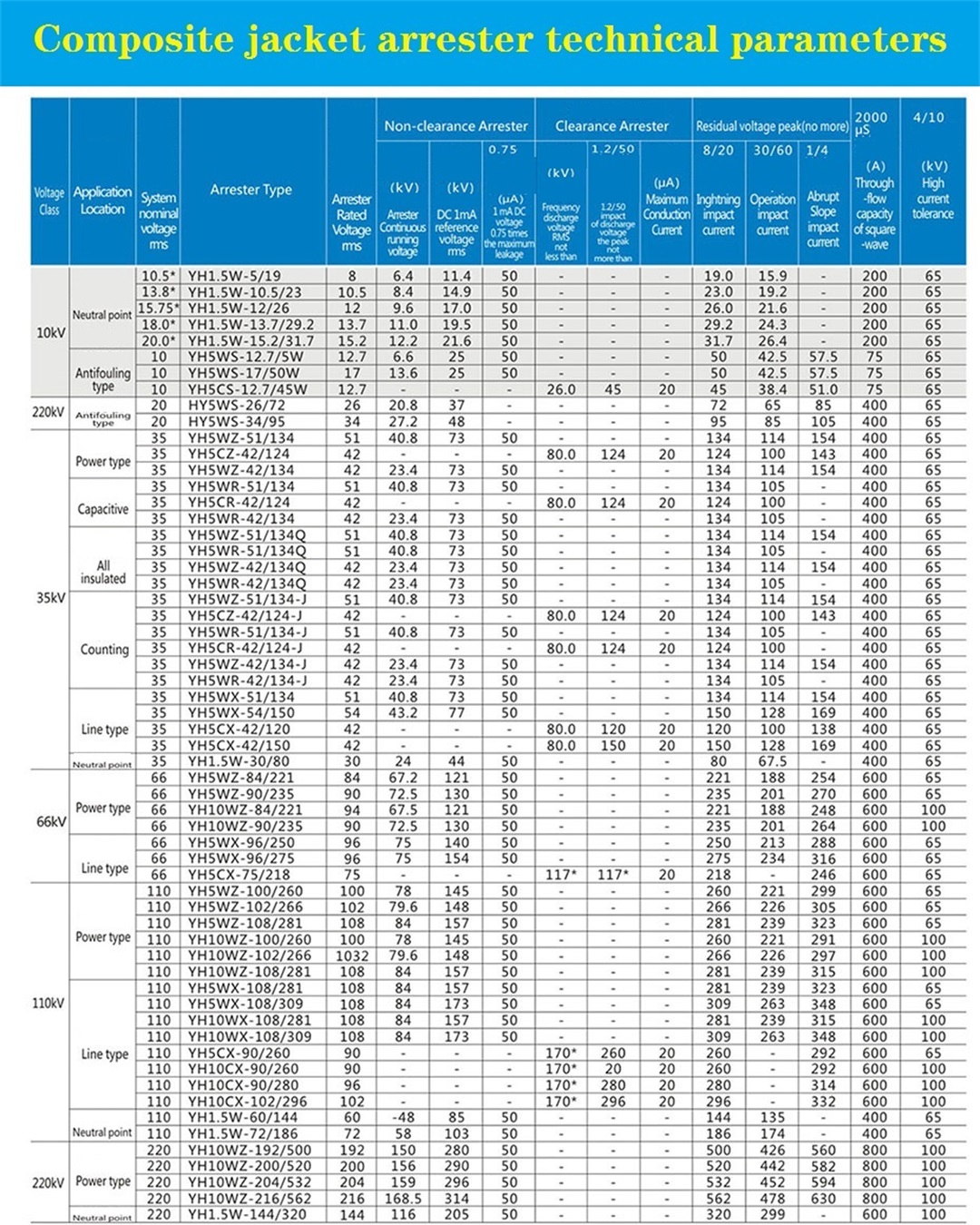

Product technical parameters and selection

参数1

参数2

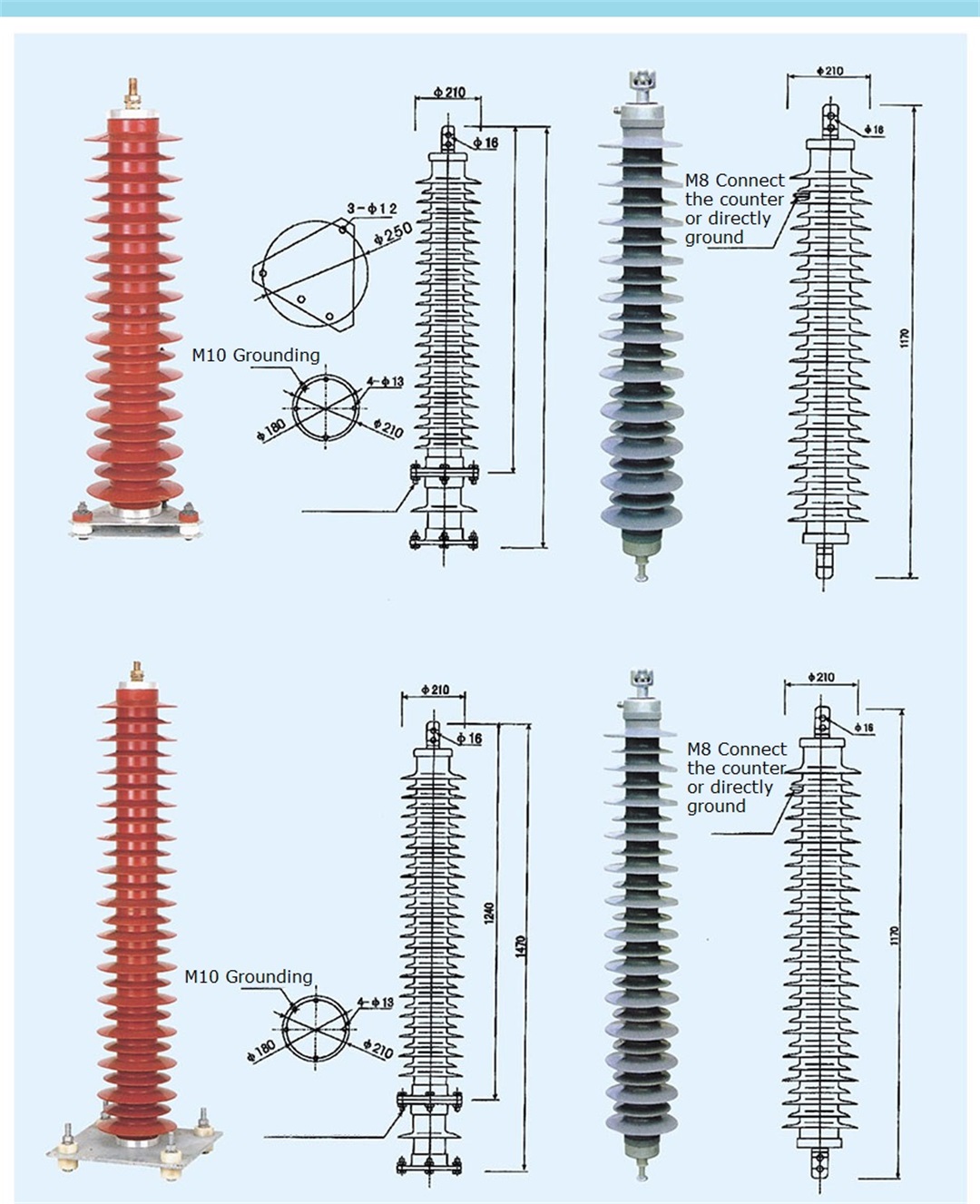

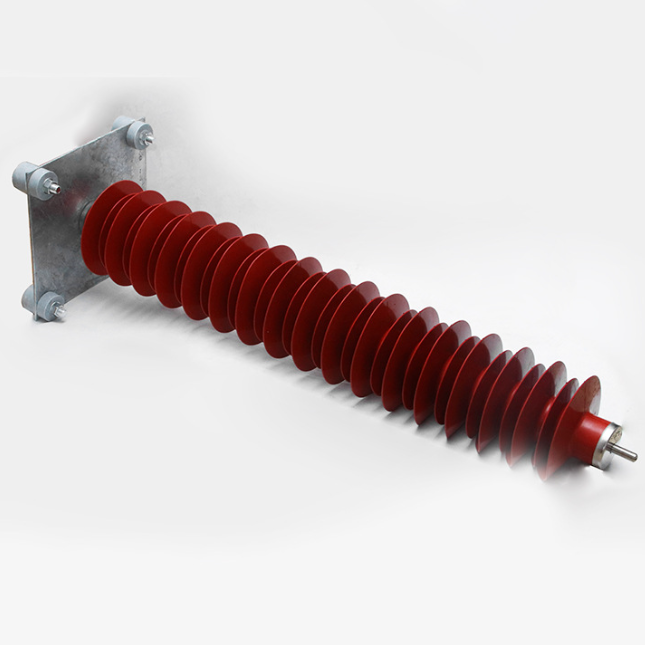

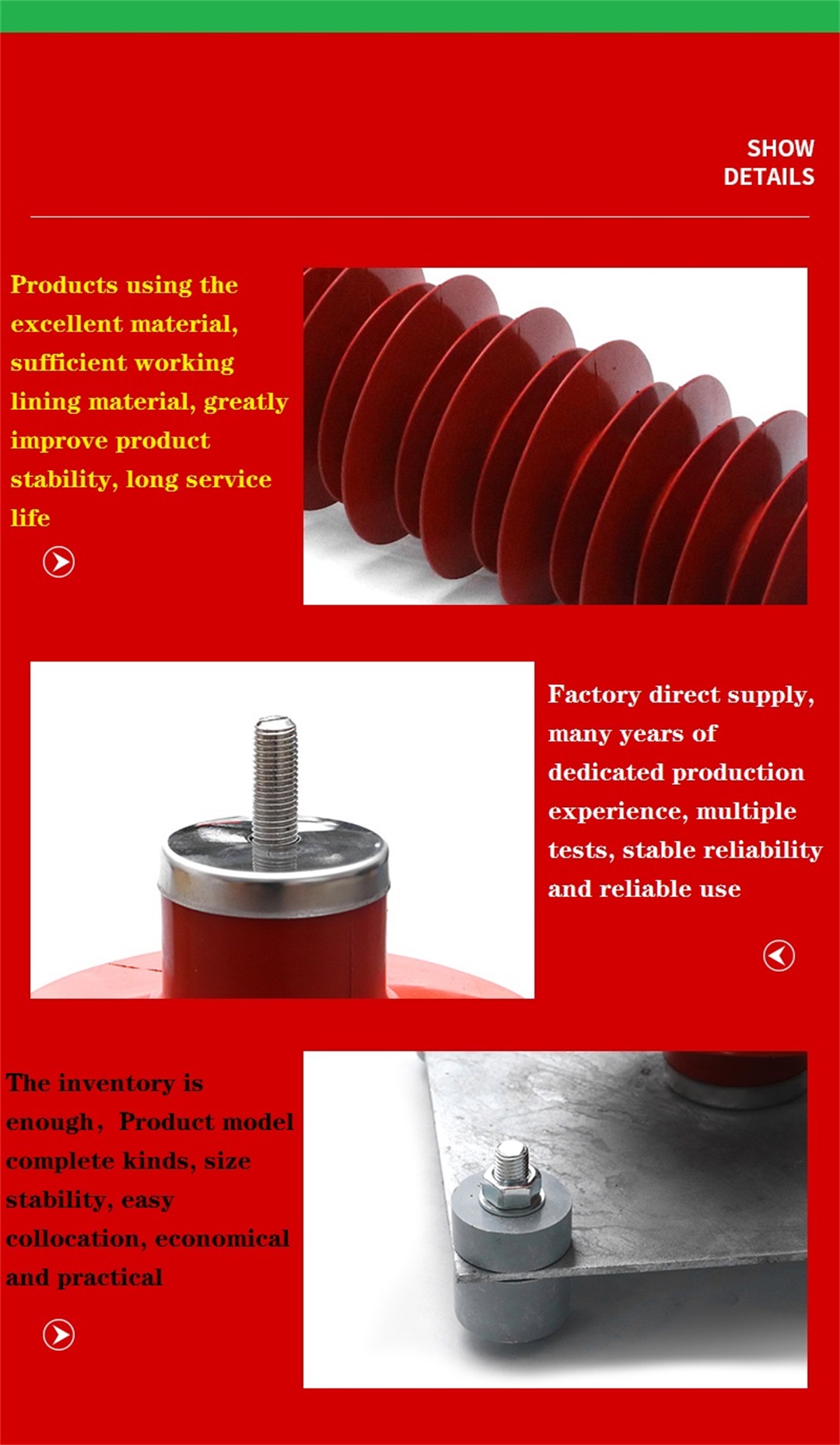

Product Structural features and scope of use

1. Small size, light weight, collision resistance, no damage to transportation, flexible installation, suitable for use in switch cabinets
2. Special structure, integral molding, no air gap, good sealing performance, moisture-proof and explosion-proof
3. Large creepage distance, good water repellency, strong dirt resistance, stable performance and reduced operation and maintenance
4. Zinc oxide resistor with unique formula, small leakage current, slow aging speed and long service life
5. The actual DC reference voltage, square wave current capacity and high current tolerance are higher than the national standard
Power frequency:48Hz ~60Hz
-Ambient temperature:-40°C~+40°C
-Maximum wind speed: not exceed 35m/s
-Altitude: not exceed 2000m
-Earthquake intensity: not exceed 8 degrees
-Ice thickness: not exceed 10 meters.
-Long-term applying voltage does not exceed the maximum coutinuous operating voltage.

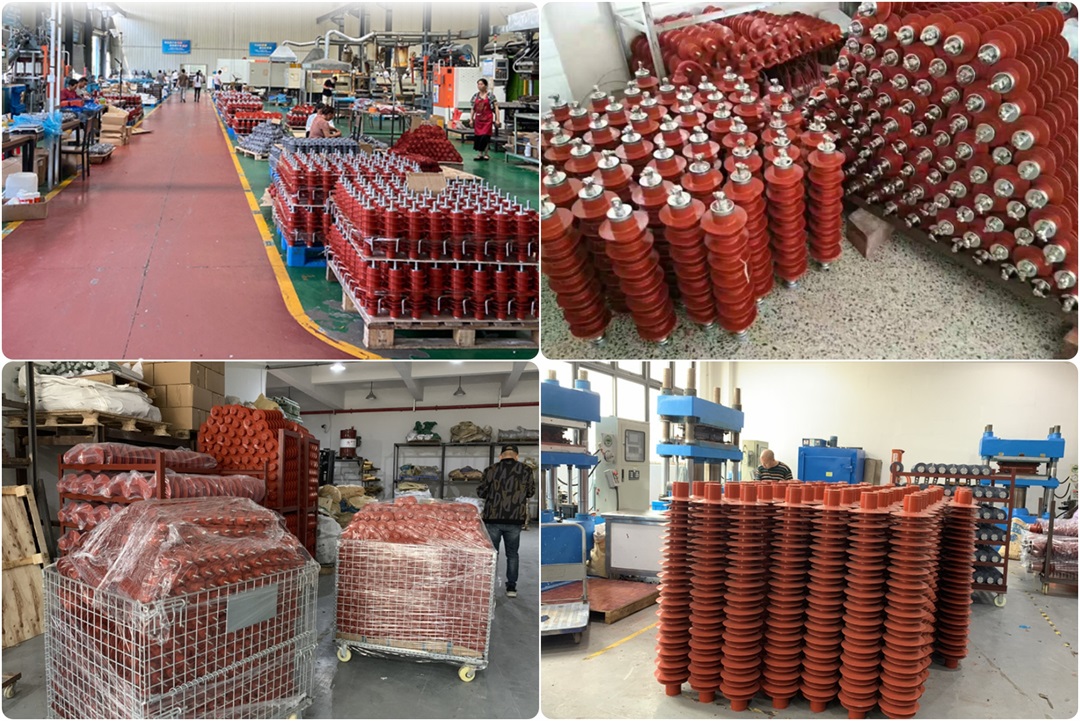

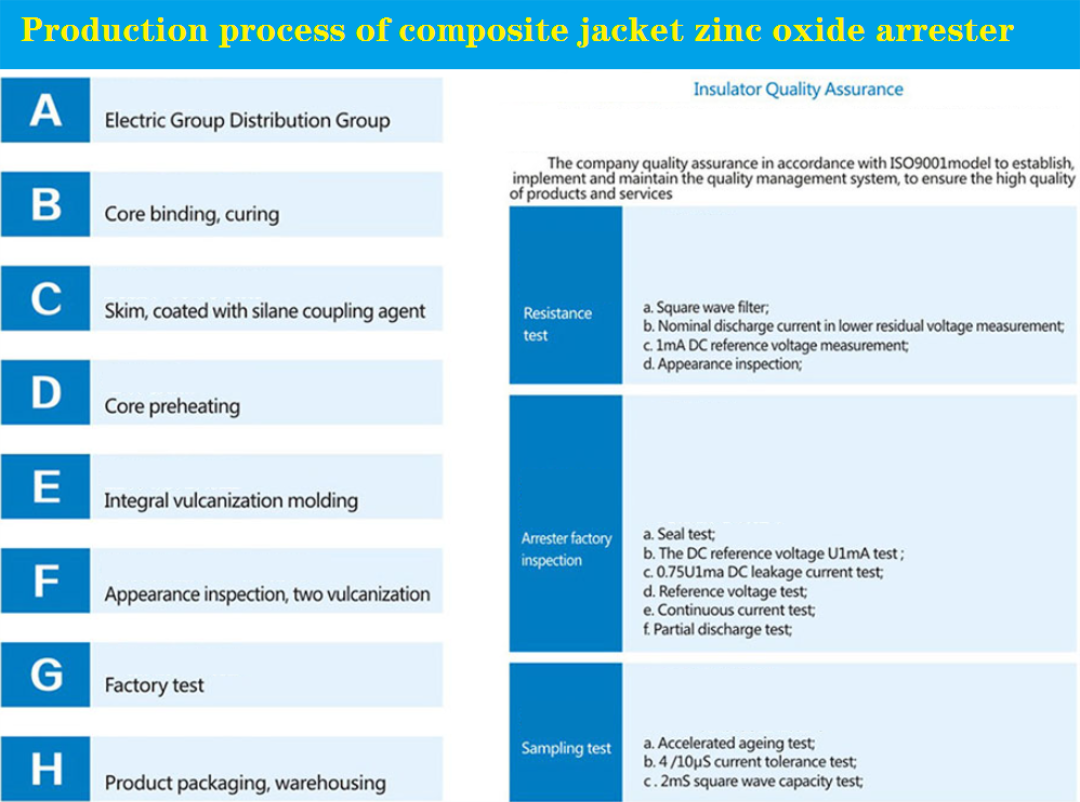

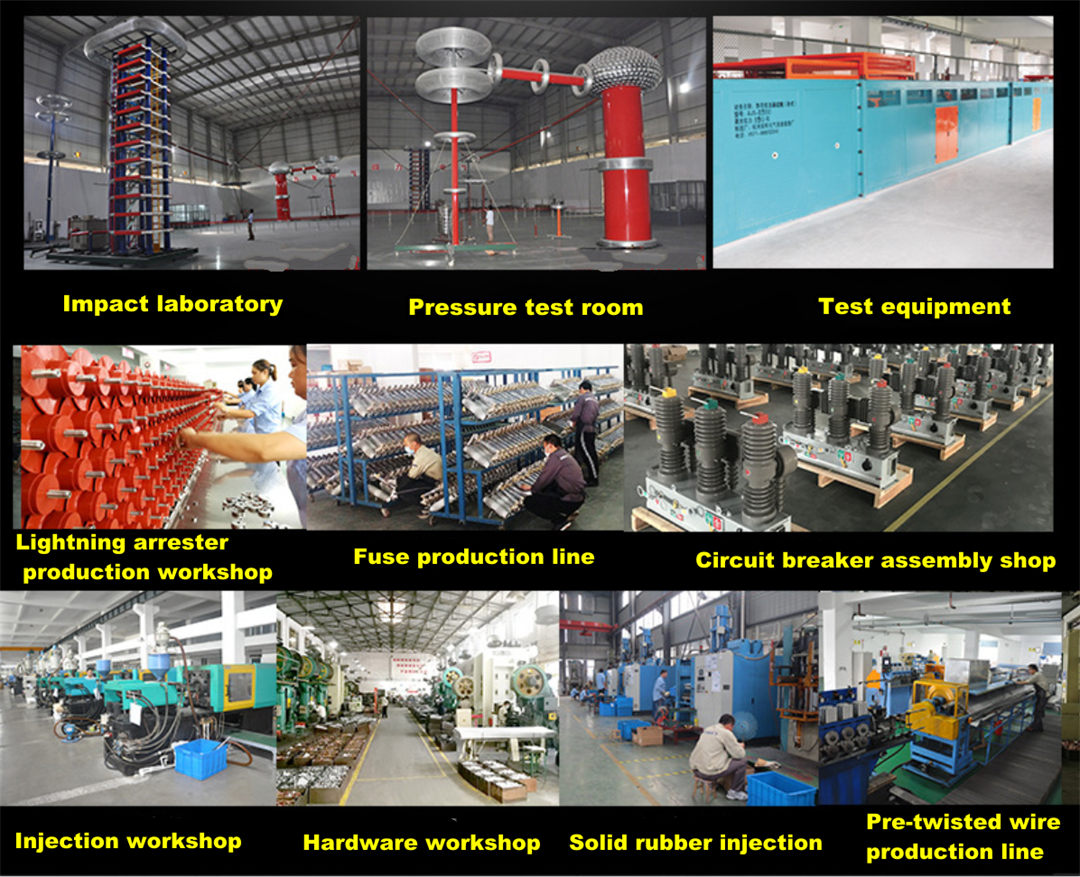

Product Specifications and Production Process

Product implementation standards and user notices

The production standard of the product is GB11032-2000 (eqv IEC60099-4:1991) "AC No-gap Metal Oxide Surge Arrester", JB/8952-2005 "Composite Jacket No-gap Metal Oxide Surge Arrester for AC System"
1. The arrester should be stored in a clean and dry room before installation and use. Must not be corroded by corrosive gases or liquids.
2. Before the arrester is put into operation, a preventive test should be carried out. After being put into operation, it should also be regularly (10KV and below arrester once every 5 years, 35KV and above arrester once every 2 years)
Do the following test and compare with the data before operation with reference to the attached table:
a. Measure the insulation resistance of the arrester
b. Measure the DC 1mA voltage of the arrester
c. Measure the leakage current of 0.75 times DC 1mA
